How Compression Fittings Work And What They Are
A compression fitting secures tubing without requiring solder, flame, or heat. They rely on a simple connection. As it tightens, the connection compresses a ring against the pipe and makes a seal. They are especially practical in confined areas and field repairs where a fast, dependable connection is needed.
Basic Components
The main pieces are the body, the ferrule, and the tightening nut. The body houses the seat and thread. The ferrule, often called an olive, rests between the nut and the pipe. When the compression nut threads onto the body, it pushes the ferrule into position.
How The Seal Works
The seal is made through radial compression. When the compression nut is tightened, the ferrule is moved into the tapered bore of the fitting body. That movement allows the ferrule to deform slightly and press against the outside diameter of the tubing.
This creates a line-contact seal that grips the tubing and helps resist leakage. Ferrule design and material directly affect the seal’s performance under pressure and temperature changes.
Common Names And Variations Across Industries
Across trades, the same fitting style may be described with different names. You may hear compression joint, compression couplings, or compression nut in plumbing supplies and HVAC catalogs. Instrumentation suppliers may list compression joints and compression fittings plumbing next to flare fittings, push-fit connectors, and other mechanical options.
| Term | Usual Application | Key Feature |
|---|---|---|
| Compression nut | Plumbing and gas lines | Threads tighten to drive the ferrule |
| Ferrule | HVAC, refrigeration, instrumentation | Compresses to grip and seal the tube |
| Compression joint | Field repairs and connections | Flame-free assembly with limited reusability |
| Straight compression couplings | Extending or joining tubing runs | Two-ended compression seal |
| Plumbing compression fittings | Home and commercial water systems | Wide material options and sizes |

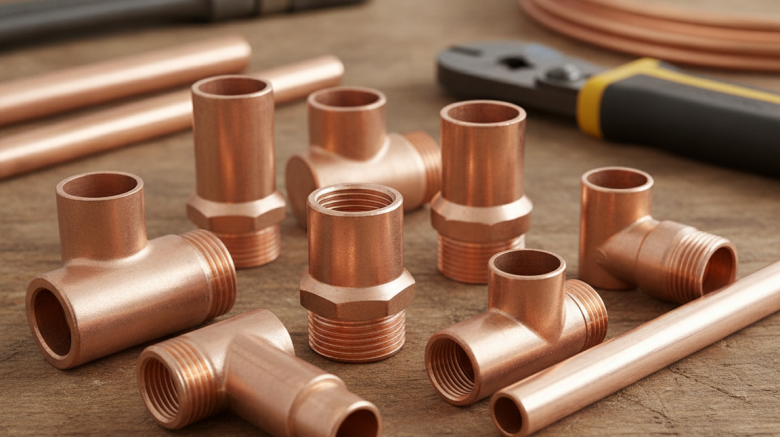

Compression Fittings For Copper Tubing
Material selection is critical to compression-joint performance. It influences performance, durability, and the risk of corrosion. Copper fittings are usually a sensible match for copper tubing. Their similar thermal expansion characteristics help maintain consistent metal contact.
Brass compression fittings, on the other hand, provide ductility. This characteristic assists in forming reliable seals without damaging the tubing.
Stainless steel compression fittings are well suited for high-pressure or high-temperature systems. They also provide resistance to many aggressive fluids. Plastic compression fittings are suitable for low-pressure domestic water lines. They avoid metal-to-metal contact and can reduce dissimilar-metal problems.
Materials should be matched to the job, pressure rating, temperature, and fluid type. For refrigeration and some plumbing, copper or brass parts are recommended. These materials help reduce mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. However, harder stainless ferrules can deform softer tubing when parts are not sized correctly.
When using copper tubing, avoid it with carbon steel or other dissimilar metals. Galvanic corrosion can significantly accelerate deterioration at the junction. This shortens the service life. If mixed metals are unavoidable, use dielectric unions, insulating sleeves, or choose compatible materials to limit electrical contact.
Before assembly, inspect the tube surface, finish, roundness, and wall rigidity. A proper surface quality ensures ferrules bite evenly and form a lasting seal. Always use the manufacturer’s compatibility guidance before mixing materials. This reduces leaks and extend the life of the joint in the field.

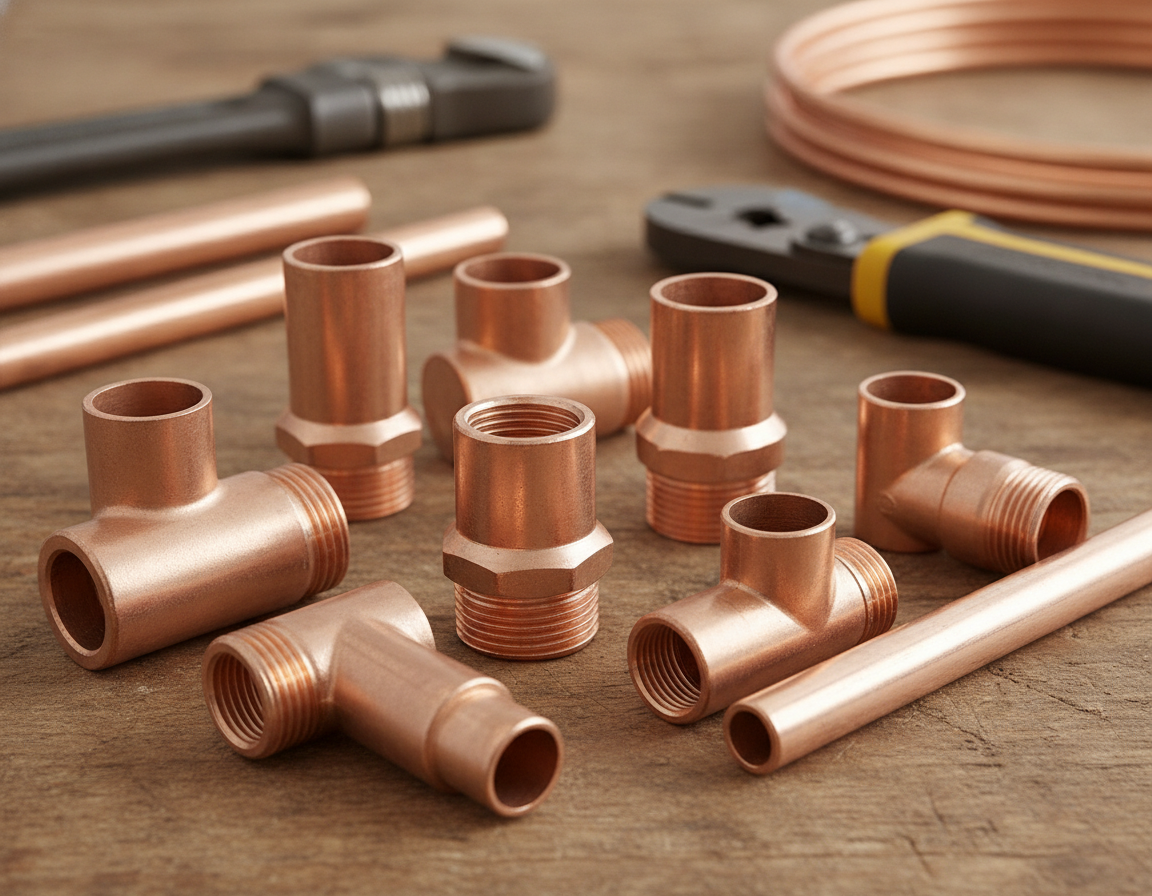

Compression Tee And T Fitting Types And Sizes For Copper Tubing
Choosing the right compression tee is important, influenced by flow needs, space constraints, and tubing sizes. Compression tees are commonly used in plumbing, refrigeration, and instrumentation systems. Ensuring a proper fit between ferrule geometry and body taper is critical to preventing leaks.
Branching And Tight-Space Variants
Straight tees allow flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They support common sizes like the Compression Tee 1/2 for residential lines.
Common Size Labels And Cross-Fit Options
Installers often identify parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. For small-diameter tube runs, the 1 4 Tee is often used. For larger branches, the 1/2 Inch Compression Fitting and 1/2 OD Compression Fitting are preferred. Cross-fit options such as 1/2 X3/8 and 3/8 X 1/2 Compression Fitting make it possible to mix sizes when required.
Mixed-Size Tees And Adapter Choices
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter changes a 1/2 line to a 3/8 branch. The 1 2 To 1 4 Compression Fitting provides a compact step-down for sensors or instrumentation taps.
Brass Tee And T-Joint Options
Brass is often selected for copper tubing because it offers corrosion resistance and compatible thermal expansion. For durable connections, look for T Brass Fitting options. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Before mixing brands, confirm thread pitch, ferrule fit, and body taper for a reliable seal.
| Fitting Type | Usual Application | Common Labels | Material Considerations |
|---|---|---|---|
| Straight Tee | Inline branch from main run | 1 4 Tee and Compression Tee 1/2 | Brass is commonly preferred with copper tube |
| Branch Tee | Side outlet from main pipe | Commonly labeled 1/2 or 1/4 Compression T Fitting | Avoid mismatched ferrules and bodies |
| Low-Clearance Tee | Tight spaces and wall cavities | Compression Tee 1/2, 1/2 Inch Compression Fitting | Shorter body while using ferrule compression |
| Combination Tee | Size transitions and instrumentation | 1/2 X 1/2 X 3/8 Tee, 1/2 X3/8, 3/8 X 1/2 Compression Fitting | Adapters available: 1 2 To 1 4 Compression Fitting |
| Brass Tee Joint | Durable copper-compatible branches | 1/2 Brass Tee and T Brass Fitting | Good copper match when pitch and taper are correct |
When To Use Compression Fittings Vs Soldering Or Other Methods
Choosing the right joint depends on the job’s conditions and the fitting’s capabilities. Compression fittings are useful for tight spaces and areas near flammable materials, as they don’t require flame. Soldering, on the other hand, is better for making a lasting bond in visible, permanent installations.
Advantages For Quick Installs And Confined Work
No-flame fittings are perfect for emergency repairs and retrofitting, as they remove the need for hot work permits or torches. They only require basic hand tools, making them a go-to for fast fixes. In low-stress systems, limited reuse may be possible, which can help during testing or section replacement.
Profile Limits And Durability Concerns
Compression fittings add bulk compared to soldered seams. Once ferrules bite into the tube, fittings can be difficult to remove and reuse. Over time, vibration or pulsation can make fittings to loosen, making soldered or brazed connections more suitable for high-stress applications.
Choosing The Right Method By Application
In plumbing, use compression fittings for quick, no-flame repairs in tight spaces. Where neat appearance and low profile matter, soldering may be the better option.
In some gas-line work, compression fittings may be used for short runs. Always verify local code requirements and use approved materials. Regularly inspect joints to ensure safety.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. Where thermal cycling is heavy, brazed or flare joints may outlast compression fittings. Compression fittings, like a Compression Tee Fitting or T Compression Fitting, are useful for service taps and temporary connections.
For instrumentation, choose fittings that can deliver leak-tight performance in high-pressure or high-purity lines. Stainless-steel compression fittings can perform very well, but pressure and media ratings must be confirmed before use.
| Factor | Compression Connection | Solder/Braze |
|---|---|---|
| Installation Tools | Wrenches, minimal tools | Torch, flux, solder or filler |
| Repair Speed | Fast setup in many field jobs | Slower setup, longer cure/cool time |
| Joint Size | Larger visible profile | Low profile, neat runs |
| Serviceability | Limited reuse depending on ferrule condition | Not reusable; permanent bond |
| Vibration resistance | Can loosen under vibration if unsupported | High resistance with rigid bonded joints |
| Usual Jobs | Plumbing repairs, gas lines, HVAC service tees | Low-profile permanent installations |
Match the fitting type to the system’s needs, following pressure, temperature, and material compatibility guidelines. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are suitable for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
Effective installation starts out with thorough preparation and a well-ordered sequence. Every step matters because poor preparation can cause leaks or damage. This guide will outline installing compression fittings on copper tubing and when to seek parts or tools from Installation Parts Supply.
Preparing copper tubing correctly is essential for a good seal. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Inspect the tube end for any nicks or deformations. Clean the tube and check the fitting and ferrule for damage before starting the assembly.
Begin by sliding the nut onto the pipe, ensuring the threads face the end. Next, place the ferrule olive on the pipe. Push the pipe fully into the fitting body and make sure the ferrule is positioned correctly. Hand-tighten the nut first, align the assembly, and then use a wrench for final tightening.
Proper tightening is central to a secure compression seal. Hold the fitting body with one wrench while tightening the nut with another. Follow the manufacturer’s turn-based instructions instead of relying only on torque readings. Do not over-tighten, because too much force can flatten the ferrule and cause leaks.
After disassembly, replacement ferrules are often needed. Once an olive or ferrule has been compressed, it should not be reused. If the ferrule is stuck, remove it with a ferrule puller or carefully cut it off without damaging the tube or fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing does not need inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If necessary, tighten incrementally. For compatible parts and detailed specifications, refer to Installation Parts Supply.
Design And Ferrule Details That Affect Performance
Ferrule selection has a major effect on how a compression joint performs under pressure and over long service periods. Whether opting for a single-piece or two-piece ferrule, each has its advantages and considerations. The design of the ferrule must match with the tubing and fitting body to ensure a secure and lasting seal.
Common ferrule shapes and material choices
Ferrules are most often made from brass or stainless steel. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A one-piece ferrule is simple to install and can work well with softer copper tube. A two-piece ferrule adds a rear ferrule that helps control rotation and reduce galling, especially in stainless systems.
Choosing asymmetrical or symmetrical ferrules
An asymmetrical ferrule must be installed in the correct direction to support consistent performance. It is commonly preferred where reliability requirements are high. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Seal geometry: line-contact versus surface-contact seals
The design of the ferrule controls whether it uses a line contact or surface contact seal. Line contact seals are better suited to creep and vibration. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tube quality and material behavior considerations
Metal tubing must have smooth walls and precise cuts to allow proper ferrule seating. Copper tubing from coils can have slight shape irregularities that influence sealing. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Reducing PTFE cold flow and soft tubing problems
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity environments, select materials and lubricants that minimize galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Installation Mistakes And Compression Fitting Troubleshooting
When diagnosing compression fitting problems, begin by checking nut tightness, tube alignment, and ferrule condition. Small leaks often stem from an under-tightened nut or an improperly seated ferrule. To prevent tubing damage, hold the fitting body with one wrench and tighten the nut with a second wrench.
Problems from overtightening may include crushed ferrules, distorted pipe, and leaks that do not stop. Over-tightening can damage the copper tubing or flatten the ferrule, leading to a poor seal. If you notice flattened tubing or a gouged ferrule, it is best to cut back the tubing and replace it with a new ferrule and nut.
Under-tightening results in a gap, allowing slow leaks. For minor weeps, apply small, incremental turns with a wrench until the leak stops. Use gradual tightening to avoid over-compressing the ferrule while still achieving a reliable seal.
Misalignment and twisting interfere with proper ferrule compression. Make sure the tubing enters the fitting body straight and seats fully. If the ferrule is misaligned, it can jam or become difficult to remove. To remove a stuck ferrule, use a ferrule puller or cut it off and replace it, being careful not to damage the tubing.
Identifying and fixing leaks starts with checking ferrule seating, tube condition, and fitting parts. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If leakage continues, re-cut the tube end, replace damaged parts, and reassemble the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can seize the nut and body, making disassembly difficult. Apply penetrating oil to stuck nuts and allow time for soaking. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Correct material selection helps prevent corrosion, galling, and premature failure. Do not pair carbon steel directly with copper if galvanic reaction is a concern. Select ferrules and fittings suitable for your system’s chemistry and temperature. In cleanroom or high-purity service, volatile cleaning agents may increase galling risk, so use anti-galling ferrules and approved compatible lubricants where permitted.
Stuck nut recovery usually starts with penetrating oil and careful patience. If the nut will not move, cutting off and replacing the nut and ferrule may be quicker than forcing it. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, consider alternatives. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Fault | Probable Cause | First Action | Long-term Solution |
|---|---|---|---|
| Slow leak | Under-tightened nut or mis-seated ferrule | Apply small turns while holding the body steady | Re-cut tubing and rebuild with new compression parts |
| Ongoing leak despite tightening | Ferrule or tube damaged by excessive force | Cut back tubing, fit new ferrule and nut | Use torque guideline and avoid overtightening |
| Ferrule or nut will not release | Ferrule bite, seat deformation, or galling | Penetrating oil; use ferrule puller or cut off | Install new parts and select anti-galling materials |
| Corroded compression joint | Wrong material choice or chemical attack | Replace corroded parts | Choose correct materials and confirm code compliance |
| Leak under vibration | Dynamic stress exceeds fitting suitability | Monitor and secure lines to reduce movement | Use soldering, welded joints, or crimp systems as alternative to compression fittings |
Final Thoughts
Copper Tubing Compression Fittings conclusion: compression fittings provide a flexible, flame-free solution for copper tubing in various fields. They work well when materials are matched and installation techniques are followed correctly. Brass, copper, stainless steel, and some plastics can be compatible when galvanic corrosion and thermal mismatch are avoided.
Installation Parts Supply guidance emphasizes replacing ferrules during reassembly and tightening fittings according to manufacturer specifications. This helps maintain reliable sealing.
Choose compression fittings for simple repairs, confined spaces, and removable joints. They do have limits when compared with soldered joints. Long-term performance depends on ferrule design, tube quality, material compatibility, and correct assembly order.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary highlights the importance of routine checks and careful installation. Make sure cuts are square, clean, and deburred. Use a sliding nut, ferrule, and insert, and tighten by hand followed by measured wrench turns.
Follow manufacturer guidelines for torque or turn-based tightening to reduce leaks or damage. For parts and compatible ferrules, consult suppliers. Look for suppliers that carry 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options suited to the project.
